the grid generation was used to develop a different type of grid in order to cover the main
coastal area along Arabian Gulf in such areas that are located in (Kuwait, Saudi Arabia,
Bahrain and Qatar) as shown at Figure1 with refine grid size varies from 50 m to 1000 m as
described as the following:
Four different types of grid that are covering Kuwait
Coast line as the following:
|
Kuwaiy Bay Refine Grids

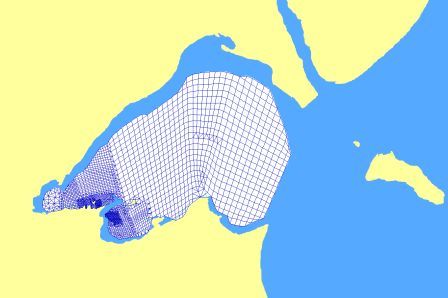

Kuwait Bay Grid. Grid that Covers Kuwait Bay with grid size varies from 50m to 500 m and
the Boundary along the Bay Entrance. Total grids are 9696 nodes. Shown at Figure
|
Kuwait Bay, Kuwait Refine Grid
|
|
Alhamdi and ALShuaiba Port Coast

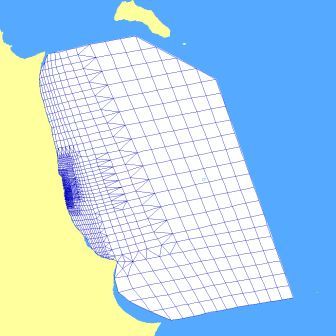

Al-Ahamdi Port. Grids the Cover Alhamdi and ALShuaiba Port with grids size varies from 50 m to 1000 m.
Total grids are 7346 nodes. Shown at Figure
|
Al-Ahmadi Port, Kuwait Refine Grid
|
|
AlZour Port Kuwait Coast

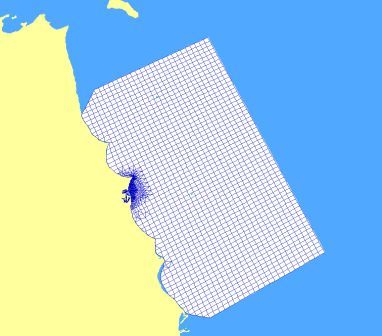

Al-Zour Area. Grid the Cover AlZour Port, the inlet/outlet of AlZour Power station and AlKhiran Project
area with grid size varies from 50 m to 1000 m. Total grids are 21854 nodes. Shown at Figure
|
Al-Zour, Kuwait Refine Grid
|
|
Arabian Gulf Refine Grids.
Two different types of grid that are covering
Arabian GulfCoast line as the following:
Saudia Arabia
Grid was developed for Saudi Arabia Coast that covers Ras Mushaab Port and Ras Al-Khafji with grid size varies
from 100 m to 1000 m. Total grids are 19092 nodes. Shown at Figure
|
Ras AlKhafji and Ras Mushaab Saudi Arabia Refine Grid
|
|
Ras Laffan Port Qatar Coast

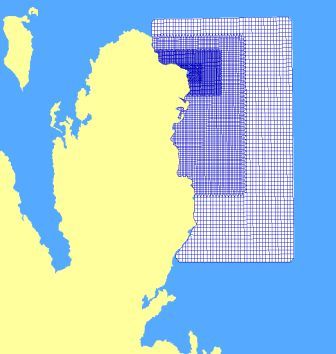

Grid was developed for Qatar Coast area that covers Ras Laffan Port Qatar with grid size varies from 100 m to 1000 m.
Total grids are 21925 nodes Shown at Figure
|
Ras Laffan, Qatar Refine Grid
|
|
Arabian Gulf Coarse Grids

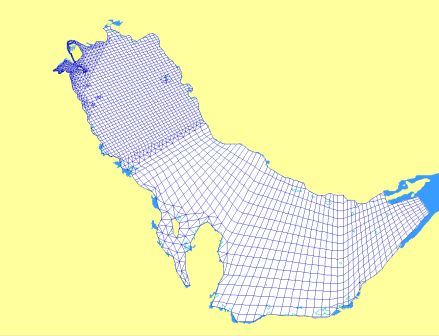

Grid was developed and covers Arabian Gulf with grid size varies from 1 km to 10 km.
Total grids are 3962 nodes Shown at Figure
|
Arabian Gulf Coarse Grid
|
|
Arabian Gulf Refine Grids

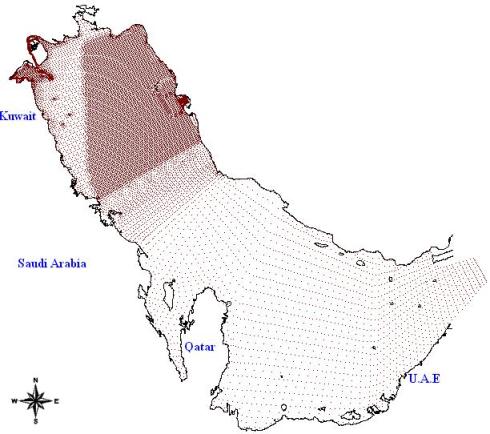

Grid was developed and covers Arabian Gulf with grid size varies from 500 m to 5 km.
Total grids are 15864 nodes Shown at Figure
|
Arabian Gulf Refine Grid
|
